TIBCO BW Integration

This page provides steps to configure TIBCO BusinessWorks (BW) to connect with JMS Bridge. It covers setting up the classpath, creating a JMS connection, and testing the connection.

Prerequisites

Section titled “Prerequisites”
  • JMS Bridge is running and accessible
  • TIBCO BusinessWorks 5.15
  • TIBCO Designer 5.12

Locate TIBCO Home

Section titled “Locate TIBCO Home”

After installation, identify the TIBCO_HOME directory. This is the root location where TIBCO components reside.

Configure Classpath

Section titled “Configure Classpath”

BW Engine

Section titled “BW Engine”

Navigate to the following file:

TIBCO_HOME/Tibco/bw/5.15/bin/bwengine.tra

In the file, locate or add:

tibco.env.CUSTOM_EXT_APPEND_CP = <artemis-lib-path>

Ensure the Artemis library path is included.

Designer

Section titled “Designer”

Navigate to:

TIBCO_HOME/Tibco/designer/5.12/bin/designer.tra

In this file, locate or add:

tibco.env.CUSTOM_CP_EXT = <artemis-lib-path>

Append the Artemis library path here as well.

Restart Designer

Section titled “Restart Designer”

After updating the .tra files, restart TIBCO Designer to apply changes.

Create JMS Connection

Section titled “Create JMS Connection”

Reopen TIBCO Designer and create a new JMS Connection.

Set JNDI Properties

Section titled “Set JNDI Properties”

In the connection configuration:

  • JNDI Context Factory:

    org.apache.activemq.jndi.ActiveMQInitialContextFactory

  • Provider URL:

    tcp://localhost:61616

  • Username / Password: Optional — e.g., admin/admin

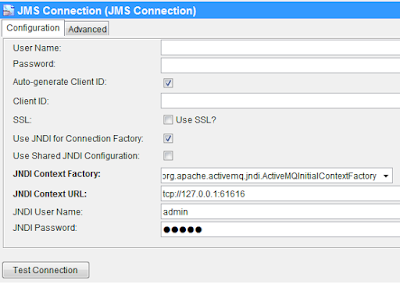

    JNDI Properties

This method directly sets the context factory inline and is temporary.

Use Global Variable

Section titled “Use Global Variable”

Recommended for better maintainability and reusability.

Create Variable

Section titled “Create Variable”

  1. Open the Global Variables menu in TIBCO Designer.

  2. Click the Add Variable button or right-click to select Add New Variable.

  3. Set:

    • Name: ActiveMQJNDI (or any name you prefer)
    • Value:
      org.apache.activemq.artemis.jndi.ActiveMQInitialContextFactory

  4. Click OK to save.

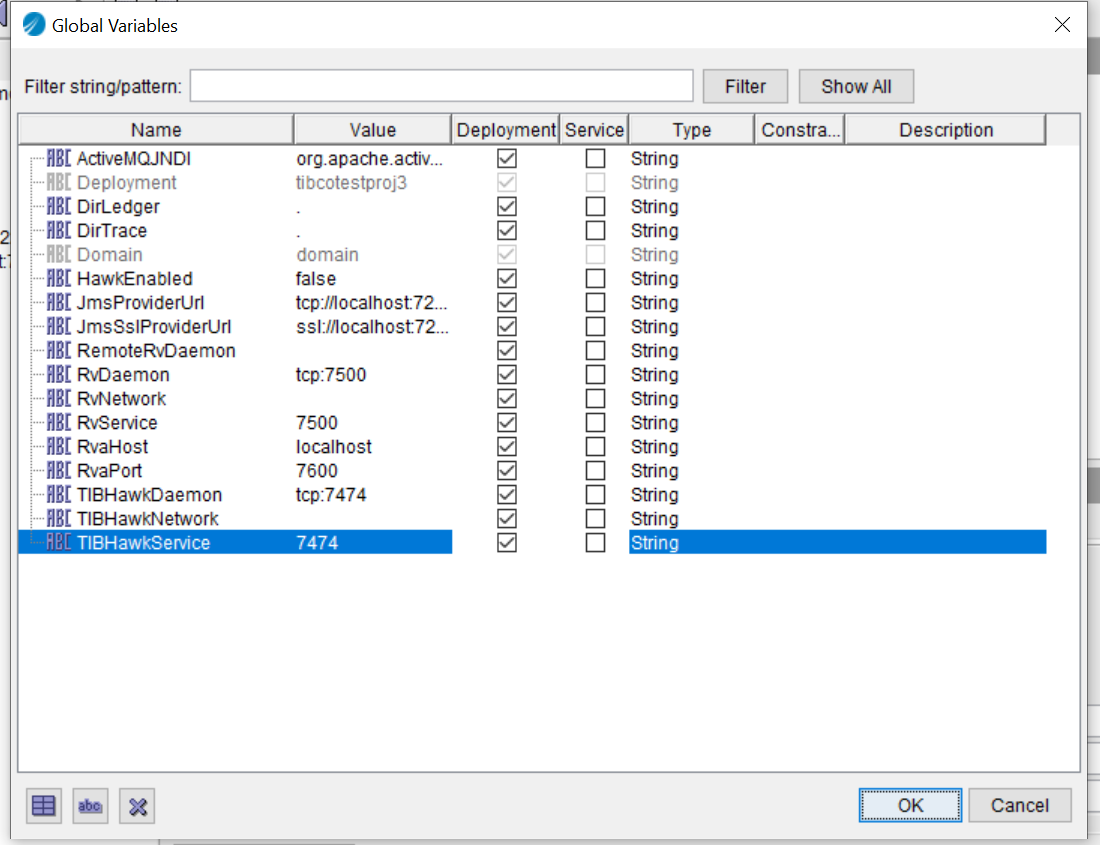

    Global Variable

Apply Variable

Section titled “Apply Variable”

Drag the created global variable into the JNDI Context Factory field in the JMS connection. It should appear like this:

%%ActiveMQJNDI%%

This makes the reference reusable and more maintainable.

Test the Connection

Section titled “Test the Connection”

  1. Click Test Connection.

    Connection Test

  2. If successful, the connection will be established and you can send/receive messages through Artemis JMS.

Troubleshooting

Section titled “Troubleshooting”
  • Verify .tra files contain the correct Artemis classpath.
  • Ensure the Artemis server is running at tcp://<jms-bridge-host>:61616.
  • Confirm required .jar files are present in the referenced lib path.
  • Always restart Designer after configuration changes.
